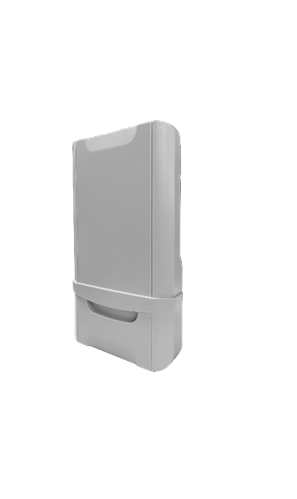

JT4000P is an advanced 2G/3G/4G VoLTE outdoor CPE product designed to enable quick 2G/3G/4G fixed data service deployment to the remote customers. It provides high speed LAN and VoLTE integrated services to end users who need both bandwidth and multi-media dataservice in enterprise or home.
JT4000P is a very cost-effective outdoor VoLTE CPE based on the standard implementation of LTE specifications. With built-in high gain antenna, it enables a longer reception range from the eNB. This yields more efficient use of the network with a larger cell reach, guaranteed carrier class service, and customer service probability.
The device has one PoE enabled data port and one RJ11 voice line port and a simple software firewall for security, providing aneffective all-in-one solution to remote enterprise or home networking needs.Factors such as integrated design, low power consumption, high antenna gain,built in GPS and improved heat dissipation designs further improve the operational life span of this device.
Radio Access | GSM/UMTS/TDD-LTE/FDD-LTE |
Operation Mode | TDD, 2Rx, 1TxD, DL MIMO |
Modulations | DL: QPSK, QAM16, QAM64 UL: QPSK, QAM16, UL QAM64 (optional) |
QOS | Support |
Output Power | DCS 30dBm GSM 33dBm WCDMA 24dBm TDD/FDD LTE 23dBm |
Frequency Band | GSM 900/DCS 1800MHz UMTS 900/2100MHz LTE B1/3/8/20/28/40/41 or LTE B38/39/40/41 |
Antenna Gain | 2-5 dBi (All abnd) 12 dBi (B38/40/41) |
